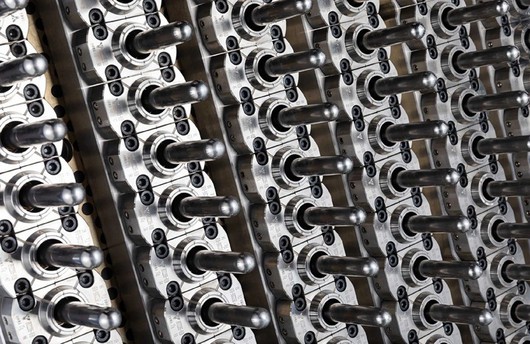

paramenters of 72 Cavity PET Preform Mould Machine
Range of Preform Mold： 1 to 144 cavities
With valve needle hot runners
| products | 72 Cavity PET Preform Mould Machine |
| Core & Cavity Steel | 2316# steel, S136, H13,718,SKD61,P20,S50C,45#steel,4Cr13, 3Cr13, Becu or based on customer's requirement |
| Steel hardness | HRC30-35 for base material; HRC45-48 for core and cavity material; HRC60-62 for special parts material |
| Plastic material | PP,PC,PA,PA6,ABS,PET,PVC,POM,etc |
| Cavity Number | 1*4 1*6 1*8 1*2 etc |
| Injection System | Pin gate, Submarine gate, Valve gate etc. |
| Cycle Time | Based on design |
| Tooling lead time | 30-60 days |
| Mould life | At least 1.5 million shots |
| Transportation | By air or by sea |
Heyan PET Mold Experience
Heyan PET Mold manufactures over 300 multi-cavity PET preform molds annually, with cavity counts ranging from 48 to 144. Through years of technological advancements and continuous improvement, Heyan PET Mold has ensured that its preform molds are more durable, easier to maintain, and capable of more efficient production.
What Will You Receive?
Heyan offers more than just a mold; we provide a comprehensive plastic PET preform injection molding solution. Imagine a turnkey preform molding line that encompasses a wide range of PET preform molds (including types like ROPP, ALASKA, PCO1810, PCO1881, BPF, 30/25, 29/25, 26/22, 38mm, 48mm, 50-150mm, and more), specialized PET injection molding machinery, and an array of accessories such as dehumidifiers, dryers, auto loaders, water towers, chillers, and more.
Furthermore, Heyan will supply detailed factory planning, gas, water, and electrical layouts, along with engineering services at the customer's factory for equipment installation, parameter adjustment, and operational and maintenance training.
Professional Preform Project Insights
PET Preform & Jar Mold Flow Analysis
Consideration of Preform Shapes & Benchmark Rates
PET Mold Equipped with an Optimal Cooling & Ventilation System
Adequate Quantity of Easily Wearable Spare Parts
Systematic Drawings and Documents Provided on CD
Production Process
why choose us
Heyan preform mould
Processing Technic Of Mold Frame
ZEISS CMM with a deteciom accuracy of 0.002mm .A complete inspection system ensures that the entire machining process is controlled down to the smallest details.
Data collection Product situation Product Standards
Quality control Quality standard Prevention question
For Maximum QTY. of 256 cavities.32 bit industrial processor based on ARM CortexTM M3.It can help us control pressure ,temperature and time series .
Advantages：
High integration PID self learning and self tuning
Self protection Abundant alarm prompts
Multiple selection setting Single channel parameter setting
Small in size Centralized selection setting
Tool Management System
The system intelligently analyzes and automatically calculates the purchase time and quantity based on the upper and lower quantity limits set for the product, combined with the outbound volume, existing inventory, and other parameters in the past year.
Through intelligent procurement forecasting, we can plan ahead without affecting production and delivery, and without causing inventory backlogs.
Structure Of Moving Mold
Lorem ipsum dolor sit amet consectetur adipisicing elit.
Injection core plate
Push plate
Guide post
R2 fire joint
Push plate guide cover
Push plate guide sleeve spacer
Slider bearing
Open module
Slider outer connecting plate
Slider guide
Slider inner connecting plate
ect.
product key technologies
Strong R & D System
The successful development of a preform project necessitates a meticulous consideration of both molding and blowing systems. Leveraging professional analysis software and extensive manufacturing experience, we can accurately assess preform shapes and benchmark rates, thereby preempting potential errors. With a forward-thinking approach, we are committed to enhancing our innovative efforts to make our finished preforms even more competitive in the market.
Standard Mold Component And Brand Spare Parts
HEYAN mold utilizes precision tooling machines to guarantee that every insert and mold component meets rigorous standards, facilitating easier maintenance in the future. By incorporating branded spare parts, HEYAN ensures that preform users achieve superior outcomes in practical applications.
Hot Runner System Innovation
The valve gate hot runner design, featuring German-made heater components, facilitates faster material flow, reduces material waste, and enhances the competitiveness of the injected preforms in the market.
Custom For All Brands Injection Machine And Automated System
HEYAN's PET preform molds are compatible with all major PET injection molding machines available in the market and are specifically designed to integrate seamlessly with various automated systems, including preform pick-up robots and others.
Proform Mold Problem
What about our Stainless Steel?
Stainless Steel certificated stainless steel material, and mold core, cavity, neck ring & lock ring will be processed by heat-treatment. And with suitable material, it will be better for producing highly precise, high stable quality PET preforms with at least 5Million shots guaranteed time.
What about our Inter-Lock Structure?
To satisfy high production capacity demand, PET preform mould are designed with interchangeable to realize weight and neck type change. And precision tooling process will ensure all inserts standard to be interchangeable enough. Besides, we could also provide Cold Half service.
What about our Interchangeable Design & Cold Half Service?
Preform moldings usually require high speed running environment. So the inter-lock structure will be easy for molds precision running to ensure that all injected preforms not off center.
Are you trading company or manufacturer??
We are factory ,our factory is located in in Shishan Town, Nanhai District, Foshan City , Guangdong Province, China.
